AutoDIGI · F9433
AutoDIGI F9433 10.1″ 1 DIN Android screen installation kit – Toyota ProAce City / Citroën Berlingo / Peugeot Partner / Peugeot Rifter / Opel Combo
The installation frame and connection wiring are included. A screen is purchased separately for the frame kit.
Confirmed compatibility and screen type
| Vehicle model | Years |
|---|---|
| Toyota ProAce City | 2021 → |
| Citroën Berlingo | 2019 → |
| Peugeot Partner | 2019 → |
| Peugeot Rifter | 2019 → |
| Opel Combo | 2019 → |
F9433 and the versions A, B, C and D shown with that product are for a 10.1″ Android screen with a 1 DIN-sized chassis. These F9433 versions are a different installation solution from the separate product codes F9433D and F9433E.

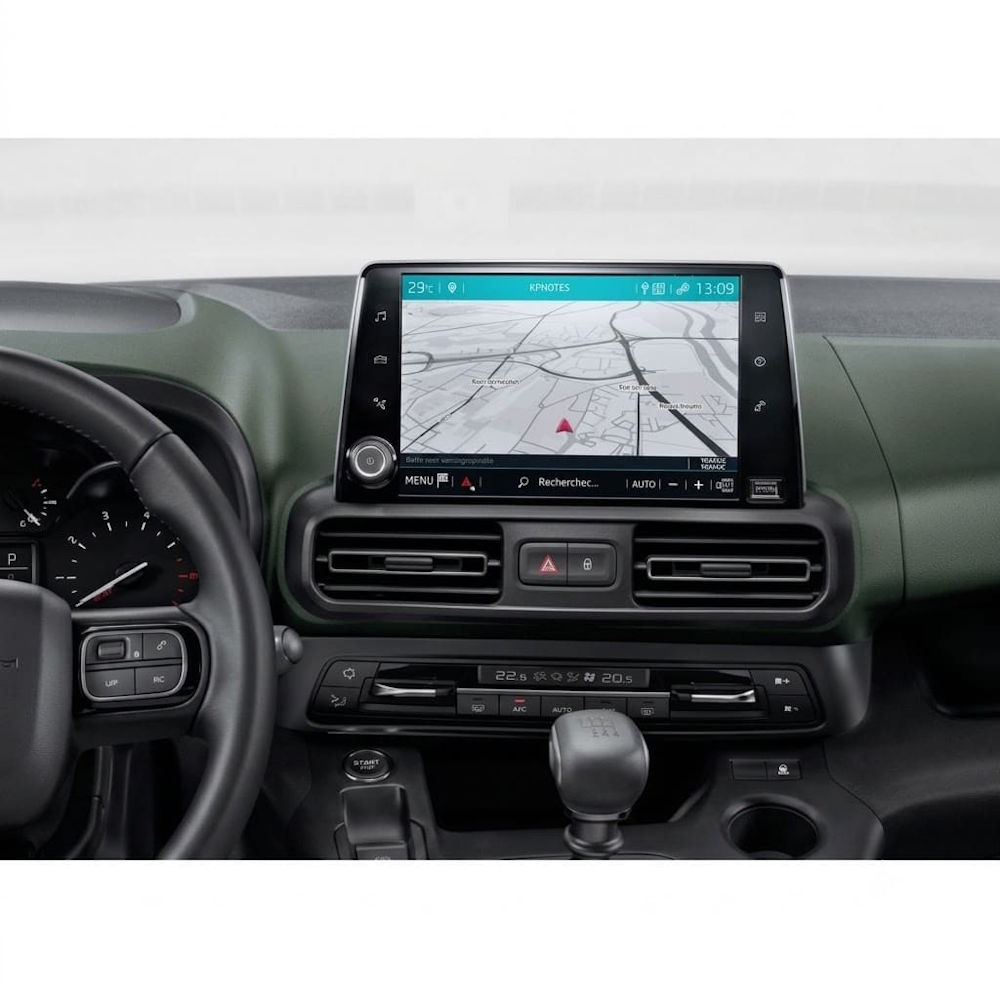

Compare the original radio and dashboard shape with the compatibility image. If unsure, send the vehicle year and a photo of the original radio switched on before ordering: info@autodigi.ee.


Kit contents and fascia version

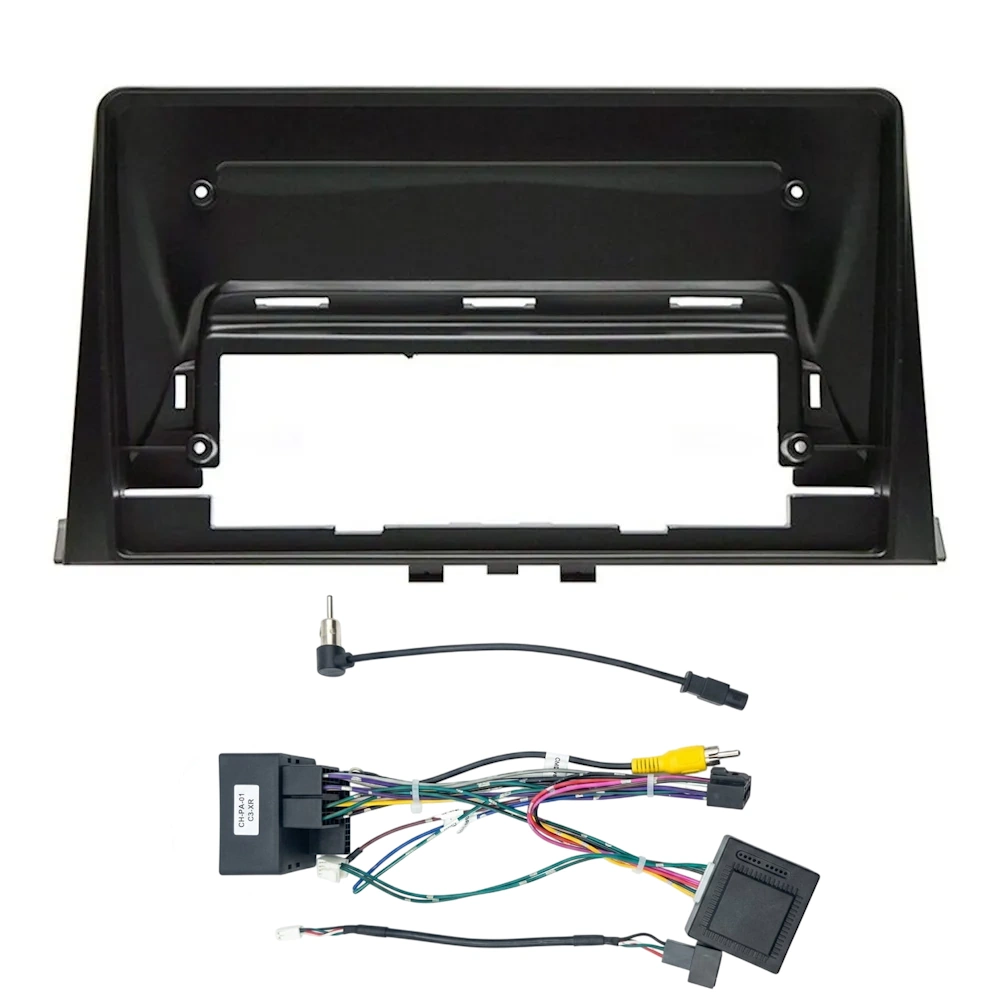

The kit includes a fascia for a 10.1″ screen and a wiring harness. The screen side uses a standard 16PIN connector, while the vehicle side has connections compatible with the original radio plugs. If the radio communicates with the vehicle over CAN-bus, the required CAN-bus adapter is included.
Steering wheel controls and original functions
With a compatible Android screen, the wiring harness supports retaining steering wheel controls and most basic vehicle functions. Exact support depends on the original vehicle equipment, the selected screen and its settings.
Questions and answers
How can I be sure this installation kit fits my vehicle (Toyota ProAce City / Citroën Berlingo / Peugeot Partner / Peugeot Rifter / Opel Combo)?
Attach a photo of the original radio with the screen switched on to your order. Include the vehicle year and let us know whether it has a factory camera or a separate amplifier. We use these details to check compatibility and select the required wiring harness.
Will the steering wheel controls in my vehicle (Toyota ProAce City / Citroën Berlingo / Peugeot Partner / Peugeot Rifter / Opel Combo) still work?
The kit supports existing steering wheel controls with a compatible Android screen. The correct CAN-bus settings may need to be selected, or the buttons may need to be assigned in the screen settings. Support for individual buttons and special functions depends on the original system.
Can I retain the original camera in my vehicle (Toyota ProAce City / Citroën Berlingo / Peugeot Partner / Peugeot Rifter / Opel Combo)?
Kits with a CAN-bus adapter can retain the original reversing camera in many cases. The camera type, connection and screen video input must be checked against the vehicle equipment. Some systems require an additional adapter.
Is a screen included, and which screens are compatible?
An Android screen is not included. The fascia is intended for an aftermarket 10.1″ Android screen with a suitable housing and mounting points. In addition to the screen diagonal, the housing dimensions, mounting points and 16PIN connector pinout must match. If you already have a screen, send us its model or a photo of the back.
